PORTABLE and MOVEABLE

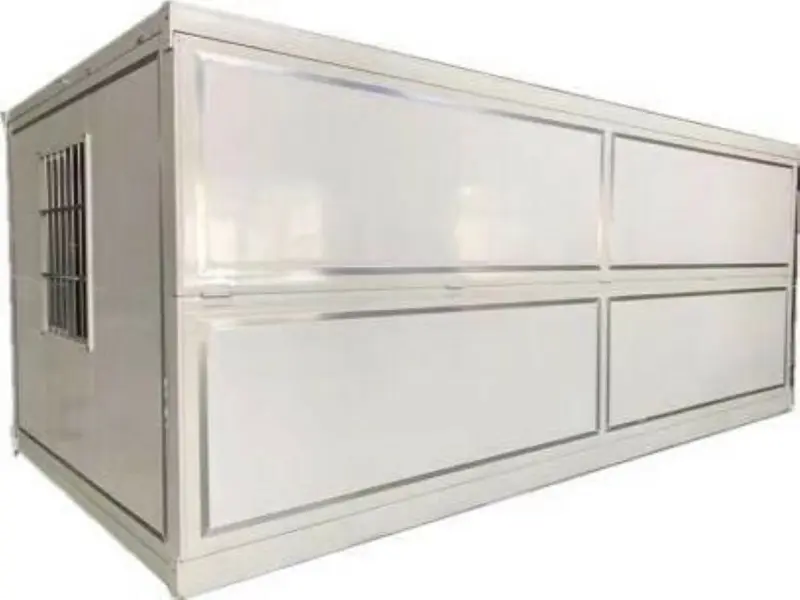

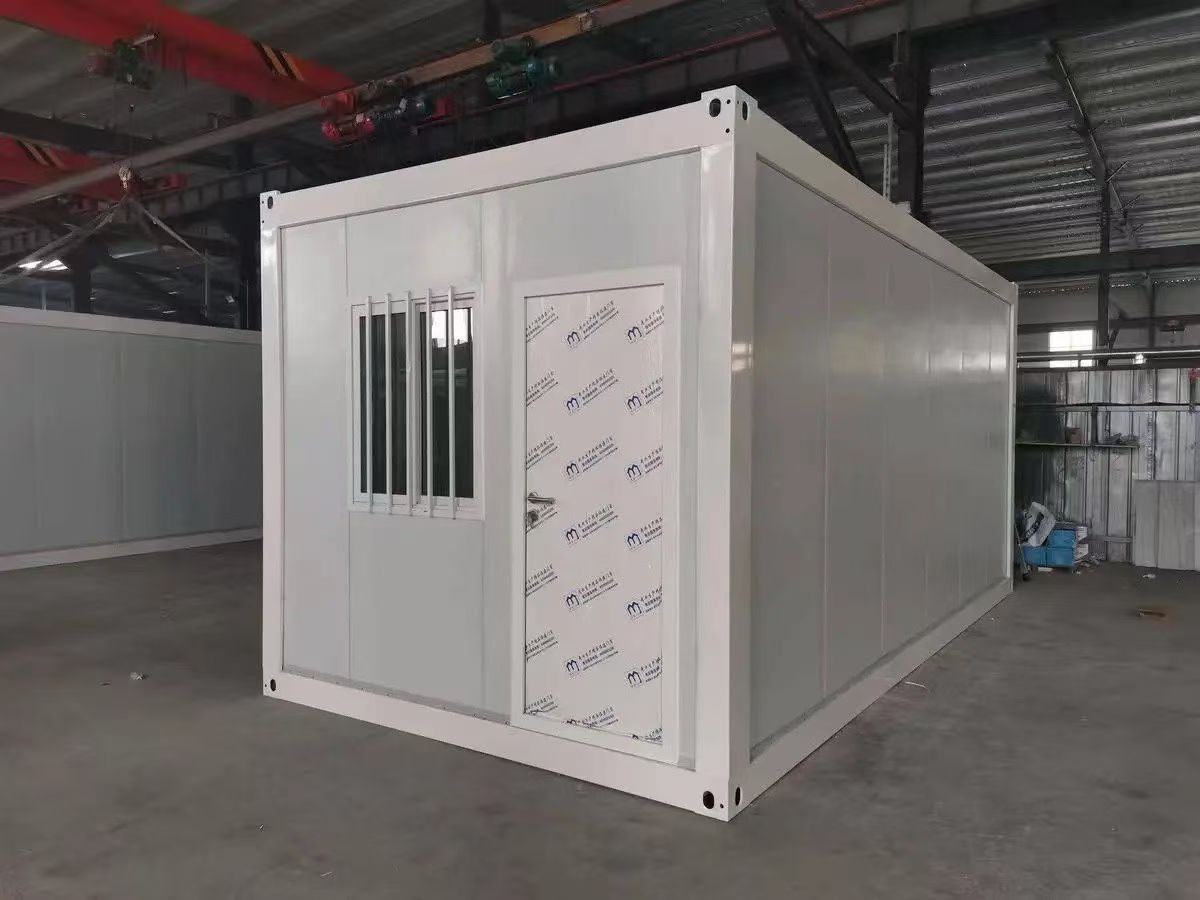

WHAT IS FOLDING CONTAINER HOUSE
A folding container house, also known as a foldable container house, is a prefabricated modular home that can be collapsed into a flat box for easy transport. It can be quickly unfolded and assembled at the construction site.
- Shape and volume: fold down into a flat, cabin-like box, measuring only 5800mm*2500mm*400mm, making it easy to move and transport. The pop-up version resembles a house. Provide a good living space for the construction worker to accommodate.
- Quickly: Prefabricated in the factory, a pre-installed electric wire system can be quickly produced. When it is for urgent use can also be quickly assembled on-site.
- Weight: lightweight made by a strong steel frame and sandwich panel for the wall and roof, inside fitted with rock wool or EPS, polyurethane(PU), making it easy to carry up and set on the truck for relocation to a new place.
- Foundation requirement: for the foundation, we do not have a special requirement; it would be just as the ground level, and the land is not too soft for putting it.
- Performance: waterproof, soundproof, fireproof, Sockproof, wind-resistant, Strong insulation, Strong weather resistance, anti-rust for a lifespan re-used for over 15 years.
- Special feature: Can be combined randomly, according to your requirements, it could be set for 2-story or 3-story, all make sense.
worldwide shipping
1 Years warranty
Online install Technical Guidance
T/T Secure payments

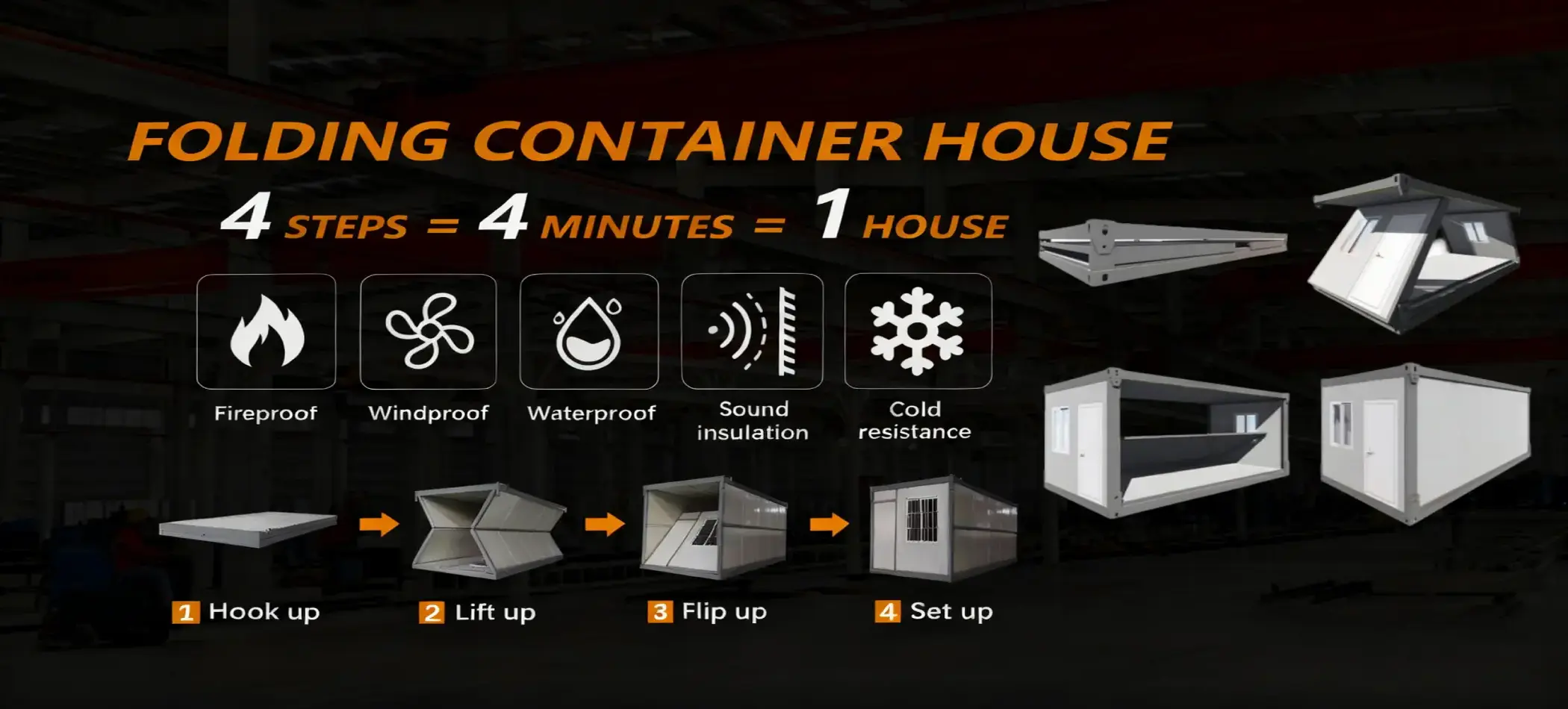

luxury foldable container house 4minutes= 4 step =1 house

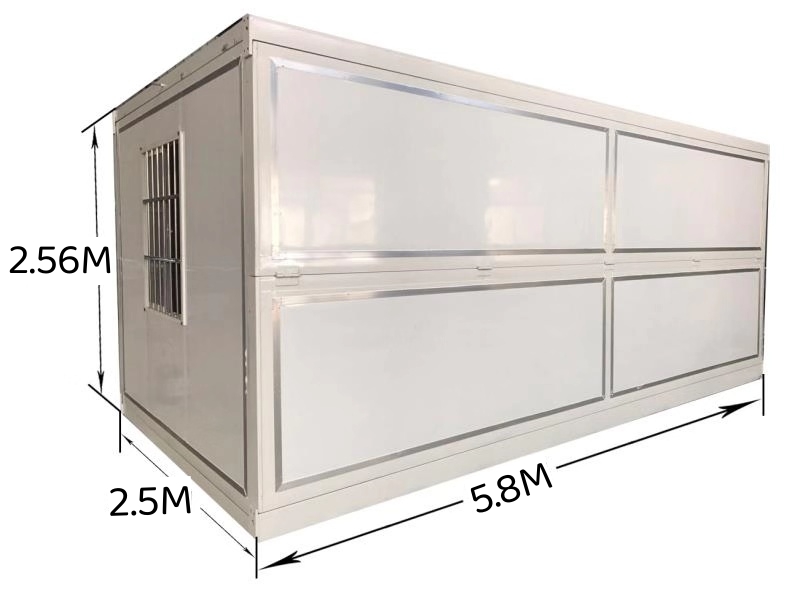

specification of folding container house
✅Building area: 14.5m2 (160square foot)
✅Closed size for travelling/storage/transport: 5850mm(L)×2500mm(W)×400mm(H)
✅Expand size for living space: 5850mm(L)×2500mm(W)×2500mm(H) (20ft Long by 8ft Wide by 8ft High)
✅weight: 1.2 T/pcs
✅Main Frame: Galvanized steel, including square tubes and angle iron
✅Walls: 50-75mm thick rock wool or EPS sandwich panels. According to your local weather option, the right to make an acceptable
✅Roof: 0.35-0.4mm galvanized steel with insulation and ceiling panels.roof top by corrugated sheet, interior roof ceiling with 831 type steel plate.
✅Floor: 18mm fireproof magnesium board floor.
✅Door: security safety steel door with a Lock.
✅Windows: Sliding plastic-steel or aluminum alloy windows
✅Electrical and safety: Electrical System--Concealed distribution box and wiring installed according to moisture-proof specifications. Certification--with CE certification, national standards.

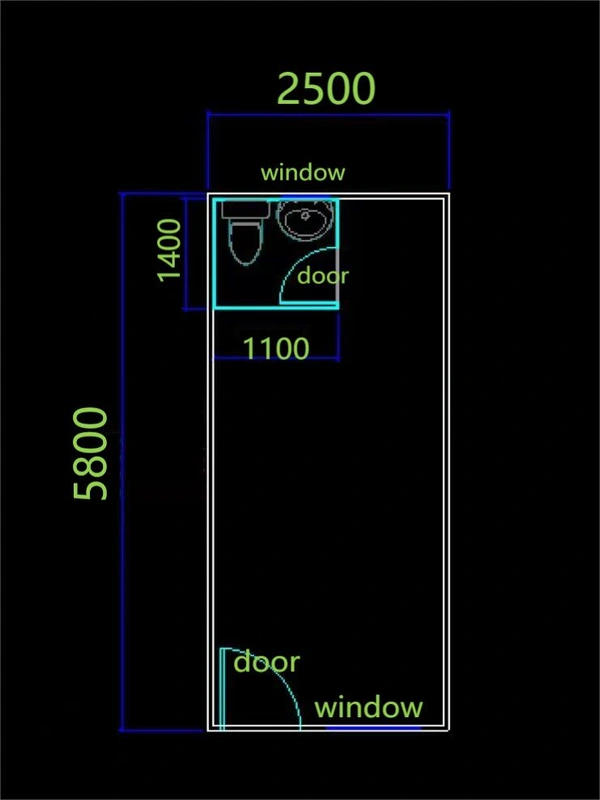

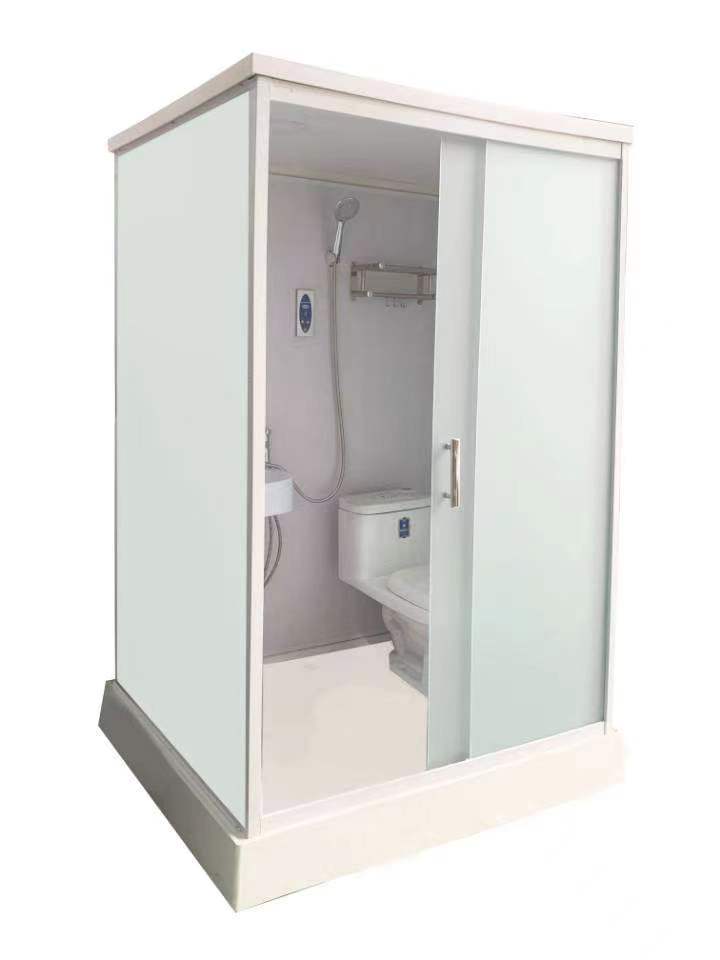

✅ A folding container house can match the integrated toilet for USE
✅Closed size for travelling/storage/transport: 5850mm(L)×2500mm(W)×400mm(H)
✅Expand size for living space: 5850mm(L)×2500mm(W)×2500mm(H) (20ft Long by 8ft Wide by 8ft High)
✅weight: 1.2 T/pcs
✅Main Frame: Galvanized steel, including square tubes and angle iron
✅Walls: 50-75mm thick rock wool or EPS sandwich panels. According to your local weather option, the right to make an acceptable
✅Roof: 0.35-0.4mm galvanized steel with insulation and ceiling panels.roof top by corrugated sheet, interior roof ceiling with 831 type steel plate.
✅Floor: 18mm fireproof magnesium board floor.
✅Door: security safety steel door with a Lock.
✅Windows: Sliding plastic-steel or aluminum alloy windows
✅Electrical and safety: Electrical System--Concealed distribution box and wiring installed according to moisture-proof specifications. Certification--with CE certification, national standards.
✅ A folding container house can match the integrated toilet for USE

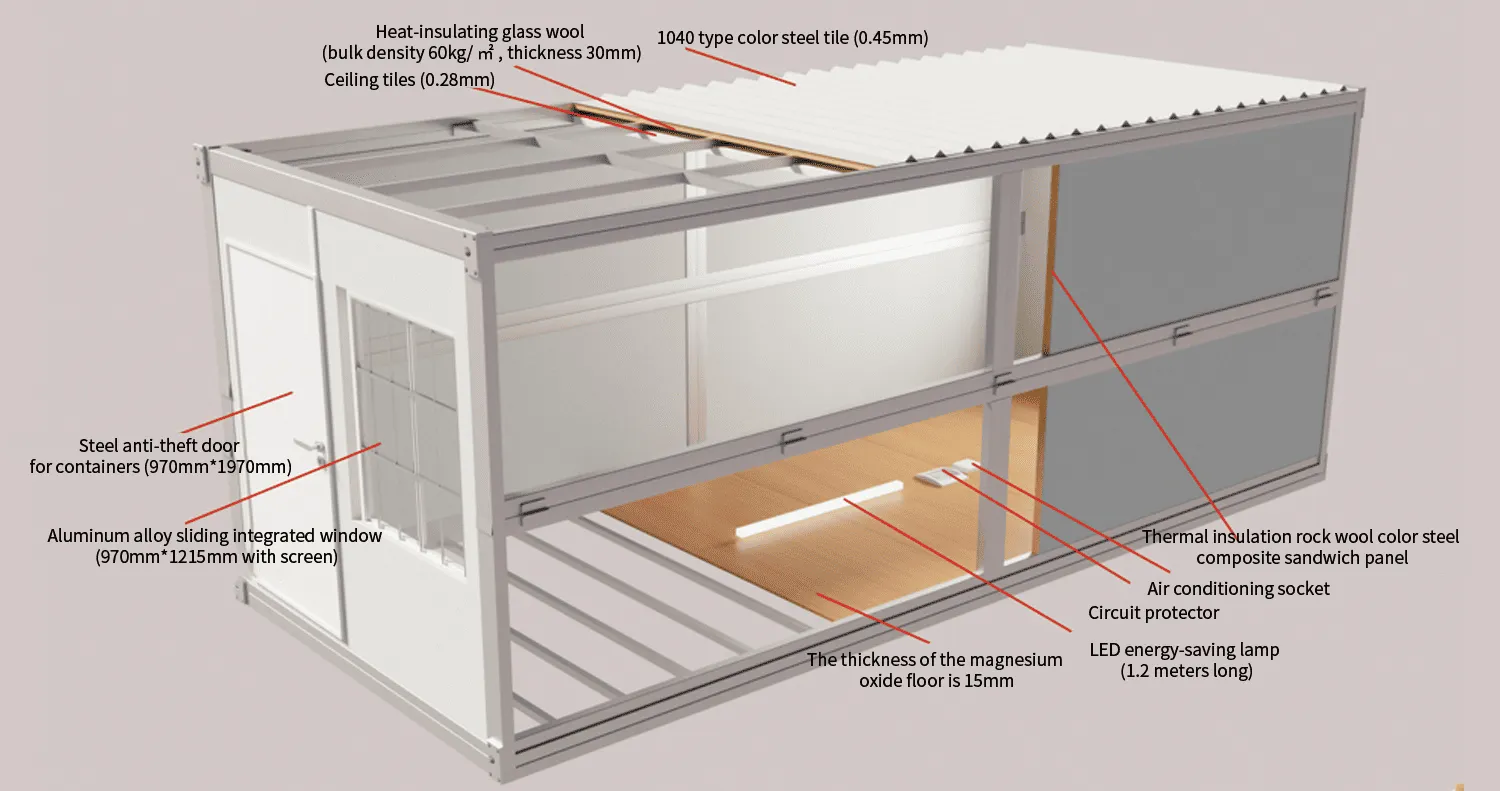

Folding Container House Structural Specification
folding container house
structural specification
folding container house technical parameters
| No. |
Item |
value |
No. |
Item |
value |
||
| data view | Roof load |
≧50kilograms/m2 | 9 | Wall deformation |
≦300kilograms/m2 | ||
| Flooring load |
≧150kilograms/m2 | 10 | Seismic grade |
10-magnitude | |||
| Aisle load |
≧200kilograms/m2 | 11 | Wind withstand |
11 level of wind loading | |||
| Wall side stress |
≧80kilograms/m2 | 10 | Interior height |
2400mm | |||
| Fire proof |
A grade | / | / | ||||
Pantrick's Folding Container House Model and Features
- 4 minutes = 4 steps = 1 house, spend less labor and time for quick assembly
- build on-site without the Foundation requirements,
- Pre-install the wall, roof, windows, and electric system in the factory. Just plug it in and ready to use, saving more of your drawing or design time
- Folding design saves a lot of fees for the transport cost. Meanwhile, make truck loading with a larger quantity of the house where you want to put,
- Rapid deployment and disassembly. When hooking it up, just use the bolt to lock the front wall and backside wall, with the column frame will be strong for working

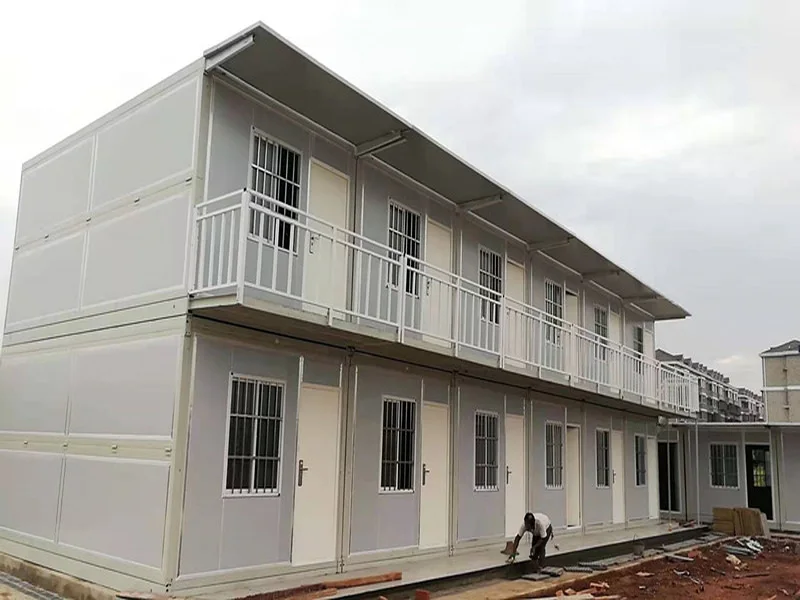

- it is make by Modular, great for a wide combination of expanded space, it can also be stacked one by one together to make it a two-story or 3 floors house
- Frame do make of 1.5-2.5mm square tube galvanized steel, MAKE Structural tight strong.
- The folding joint is reliable and durable. Made with 5mm thick and size with 120*95mm total of 36 pcs for a folding container house
- New upgrade Material is perfect for thermal insulation, suitable for use in extremely cold and harsh environments.
- 4 minutes = 4 steps = 1 house, spend less labor and time for quick assembly
- build on-site without the Foundation requirements,
- Pre-install the wall, roof, windows, and electric system in the factory. Just plug it in and ready to use, saving more of your drawing or design time
- Folding design saves a lot of fees for the transport cost. Meanwhile, make truck loading with a larger quantity of the house where you want to put,
- Rapid deployment and disassembly. When hooking it up, just use the bolt to lock the front wall and backside wall, with the column frame will be strong for working
- it is make by Modular, great for a wide combination of expanded space, it can also be stacked one by one together to make it a two-story or 3 floors house
- Frame do make of 1.5-2.5mm square tube galvanized steel, MAKE Structural tight strong.
- The folding joint is reliable and durable. Made with 5mm thick and size with 120*95mm total of 36 pcs for a folding container house
- New upgrade Material is perfect for thermal insulation, suitable for use in extremely cold and harsh environments.
1
/
3
folding container house certification for safety
folding container house certification for safety

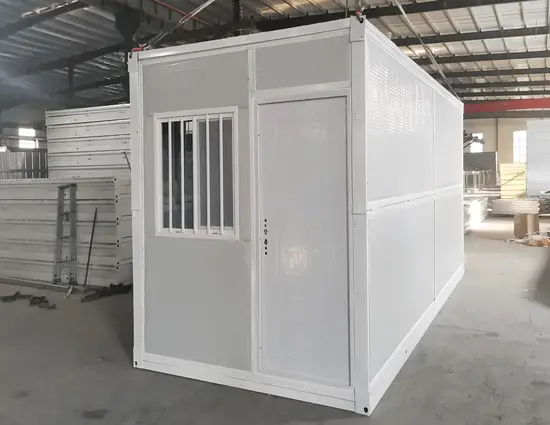

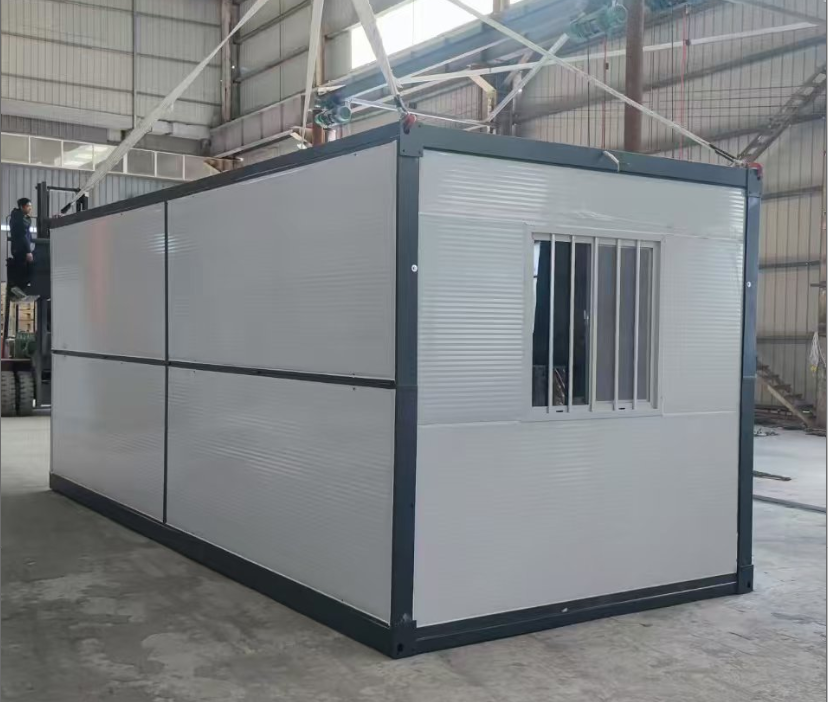

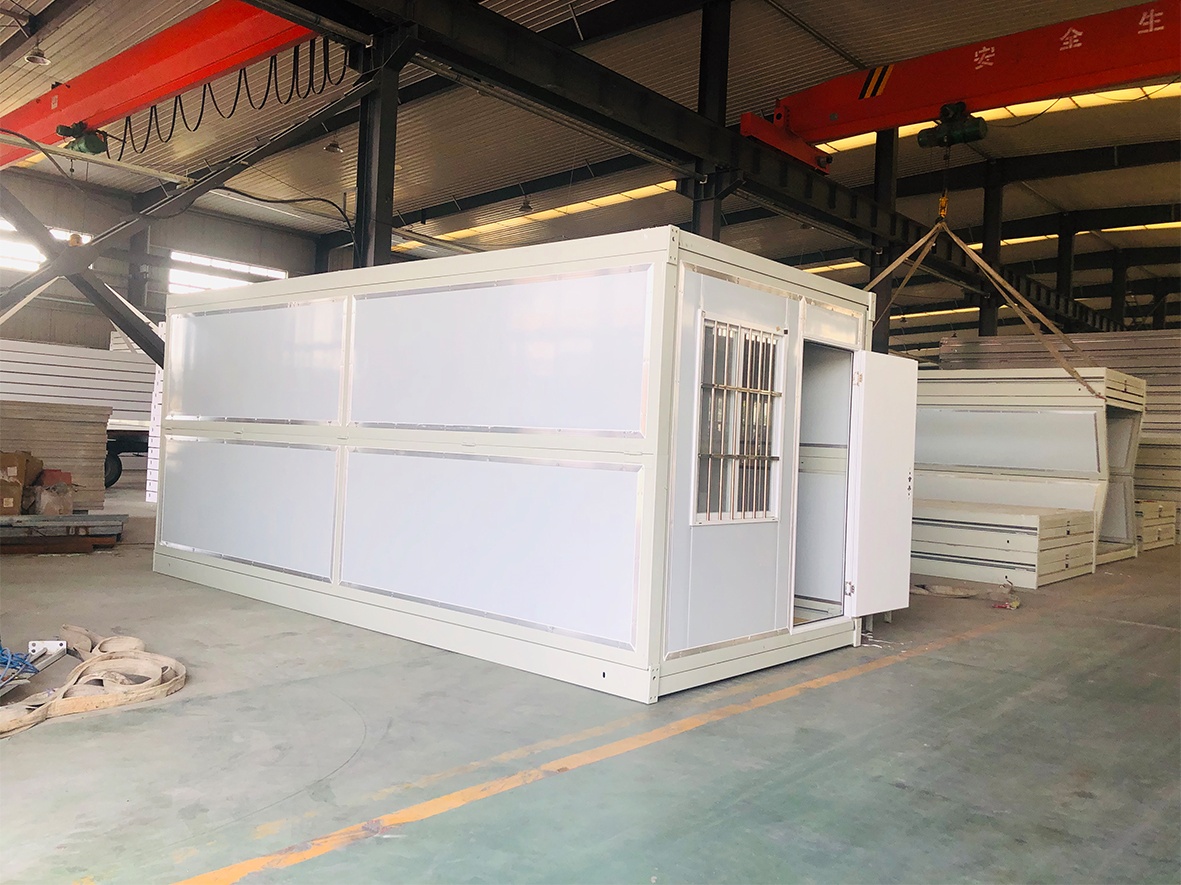

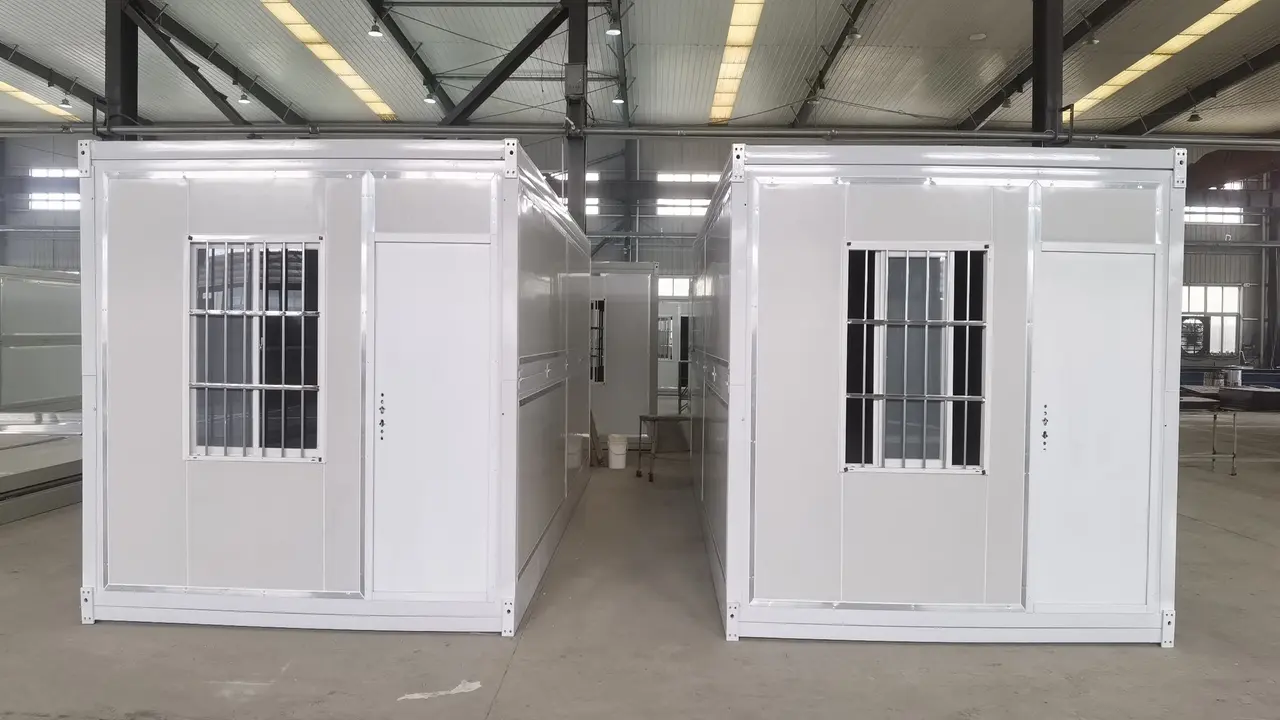

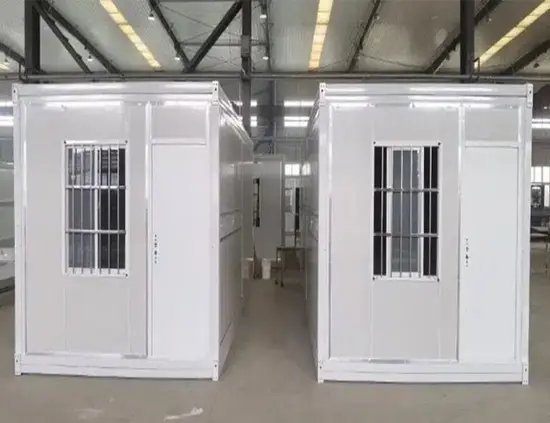

Discover the Folding Container House in our factory

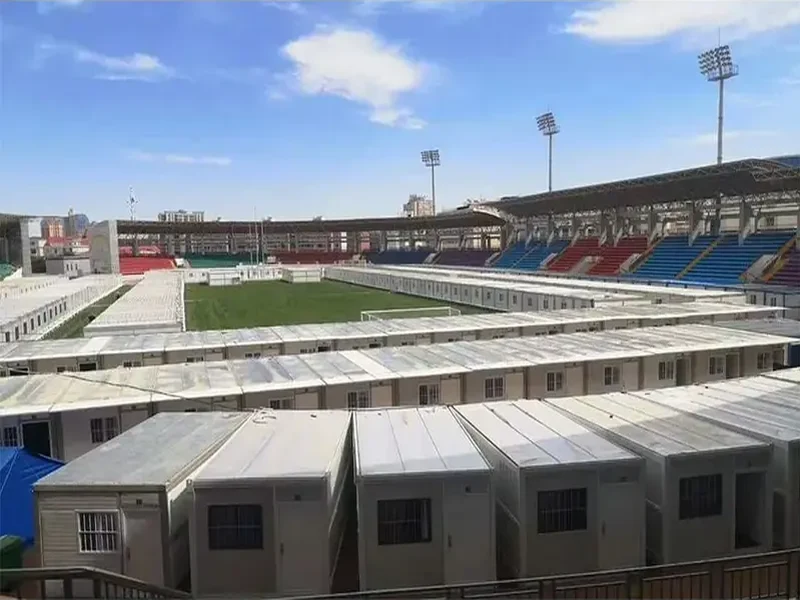

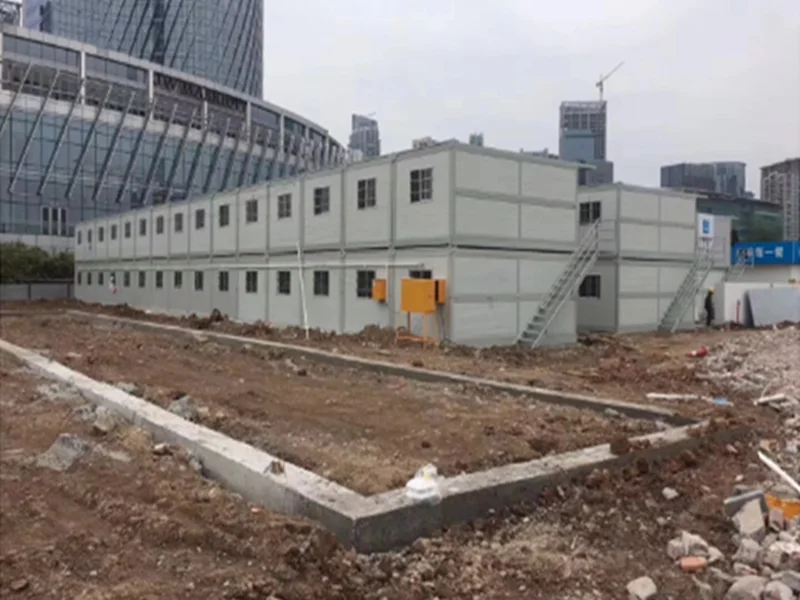

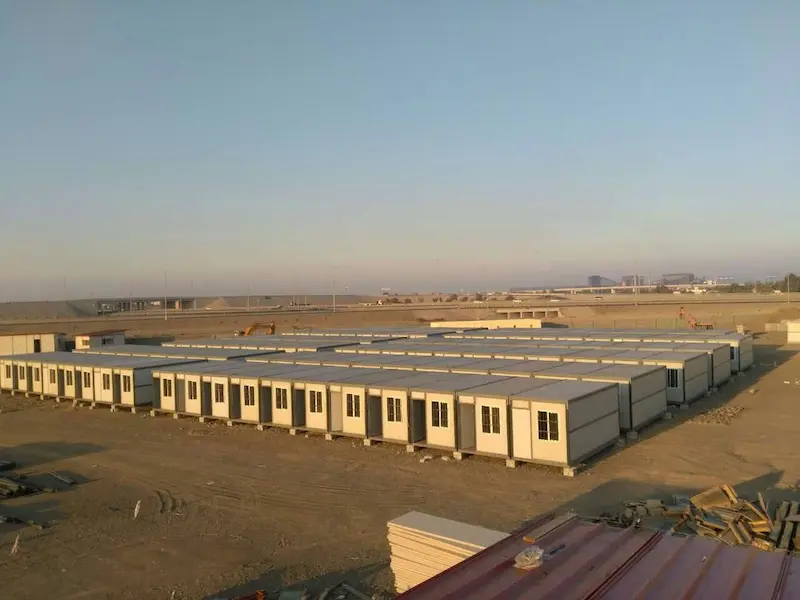

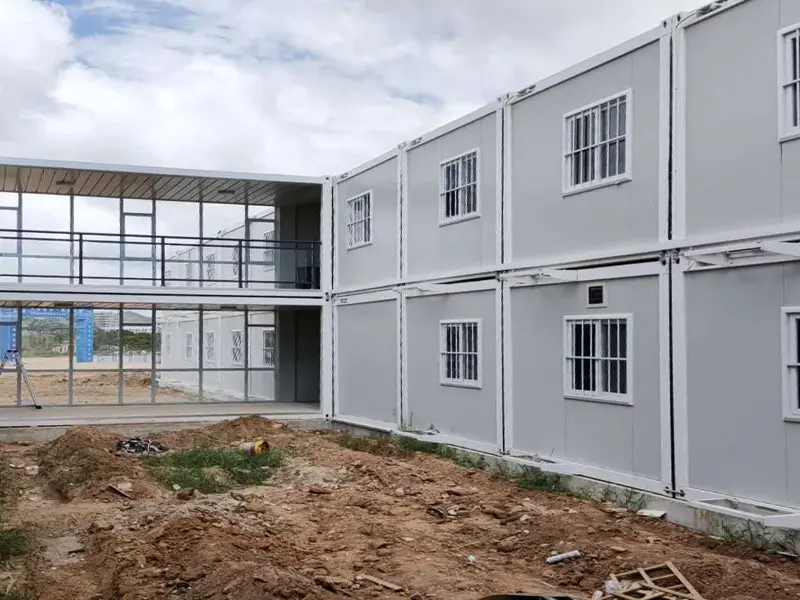

Pantrick Folding Container House provided to you: typical Application Solutions
1
/
3

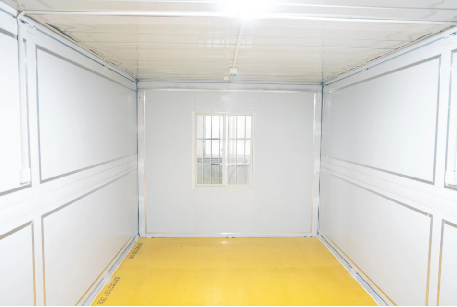

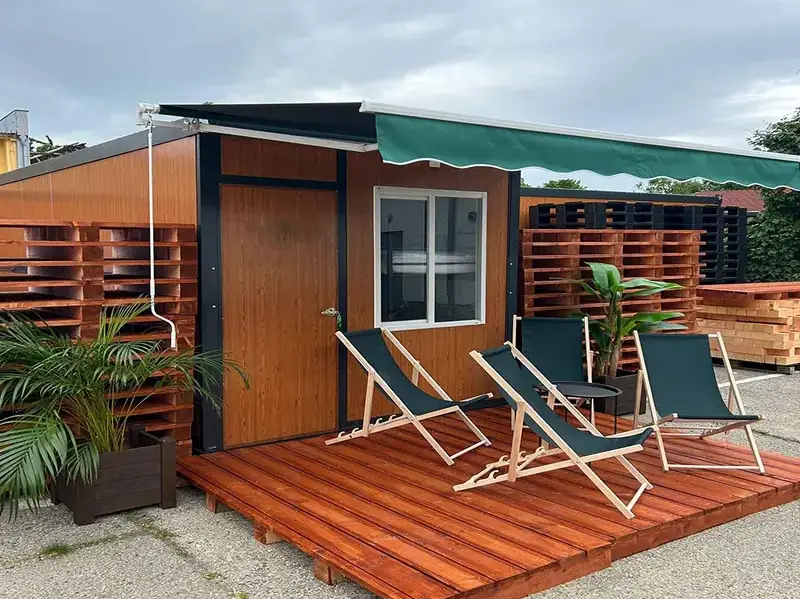

folding container house interior and exterior gallary

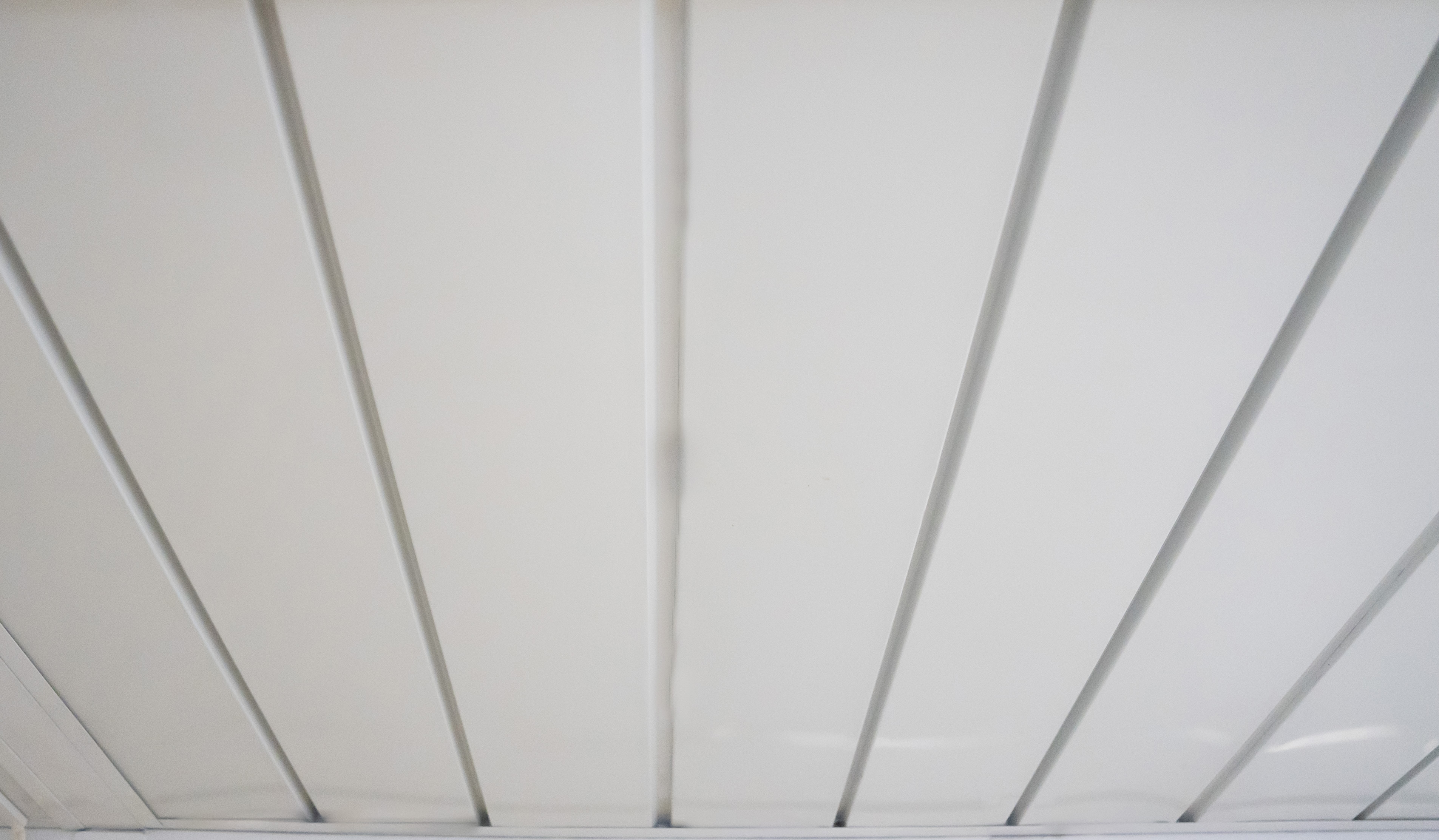

831 type ceiling

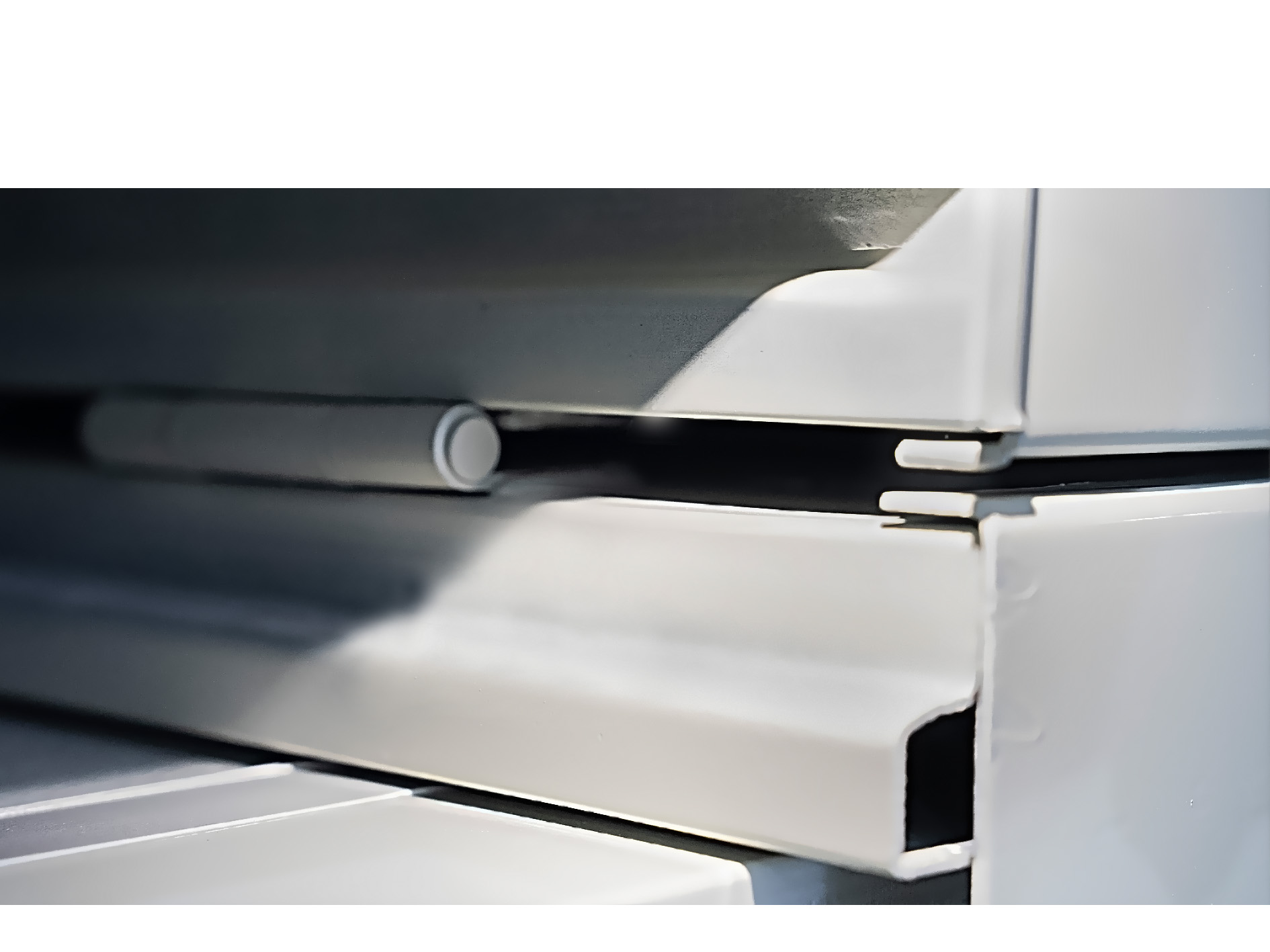

Stainless steel and galvanized hinge with 5MM thick
sandwich panel steel plate with 0.3MM
Roof load ≧50kilograms/m2
frame made of galvanized steel 1.5-2.5mm Thick
A grade fireproof safety door
50mm rock wool for the wall fitting,insulation and fire prevention

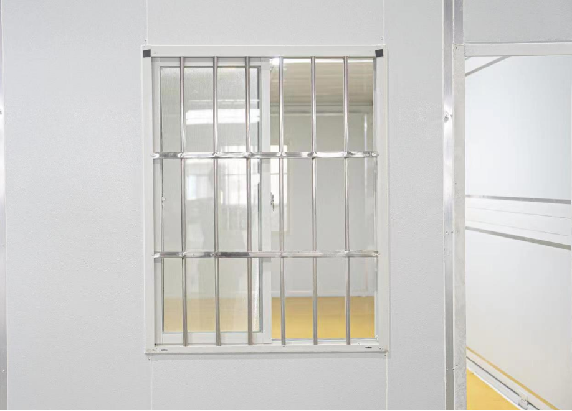

aluminum sliding windows
space room and building area with 15sqm/unit
831 type ceiling
Stainless steel and galvanized hinge with 5MM thick
sandwich panel steel plate with 0.3MM
Roof load ≧50kilograms/m2
frame made of galvanized steel 1.5-2.5mm Thick
A grade fireproof safety door
50mm rock wool for the wall fitting,insulation and fire prevention
aluminum sliding windows
space room and building area with 15sqm/unit

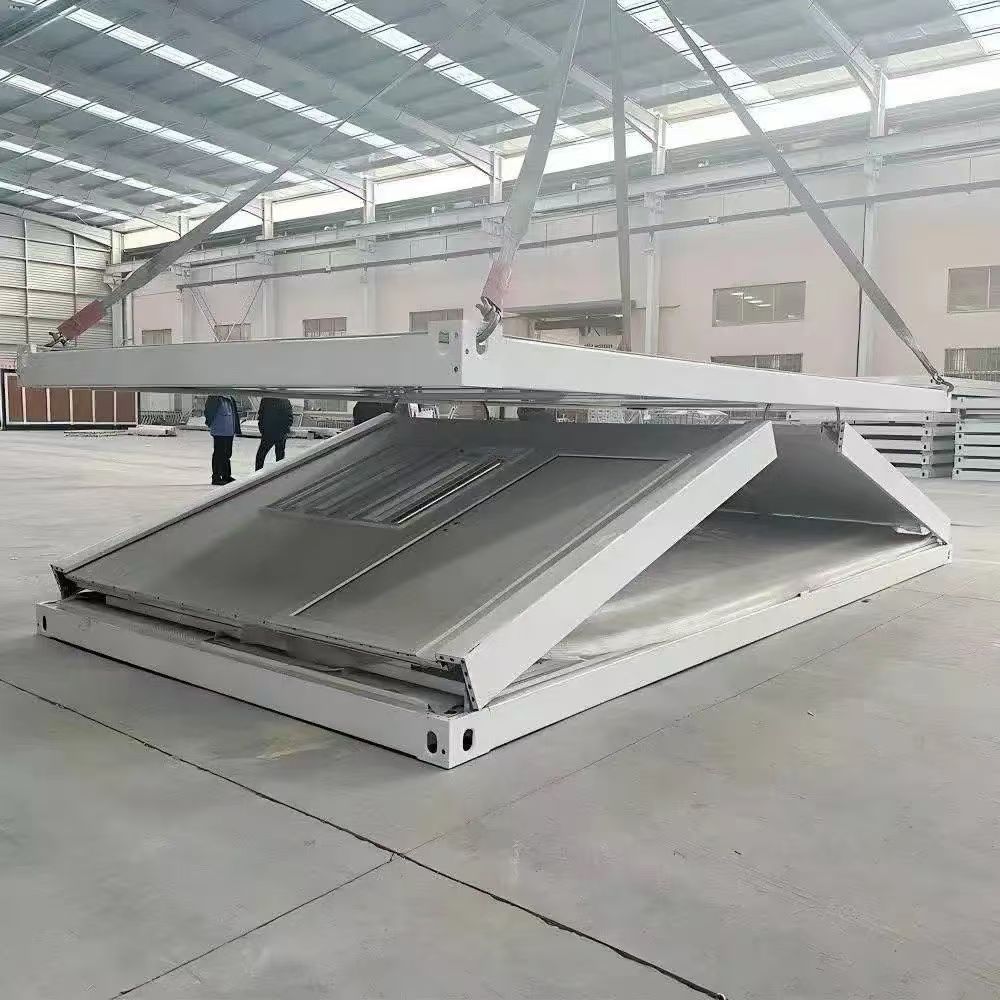

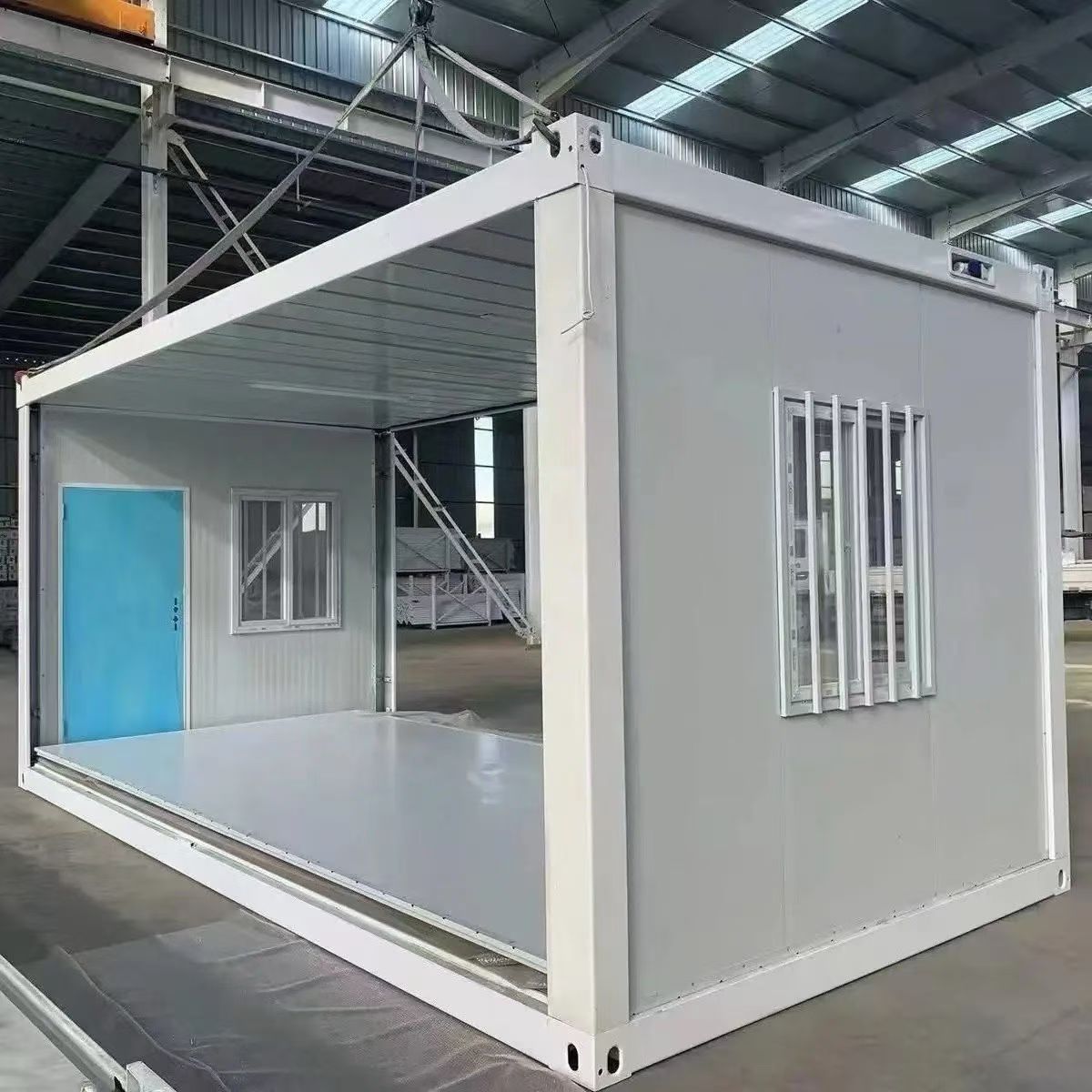

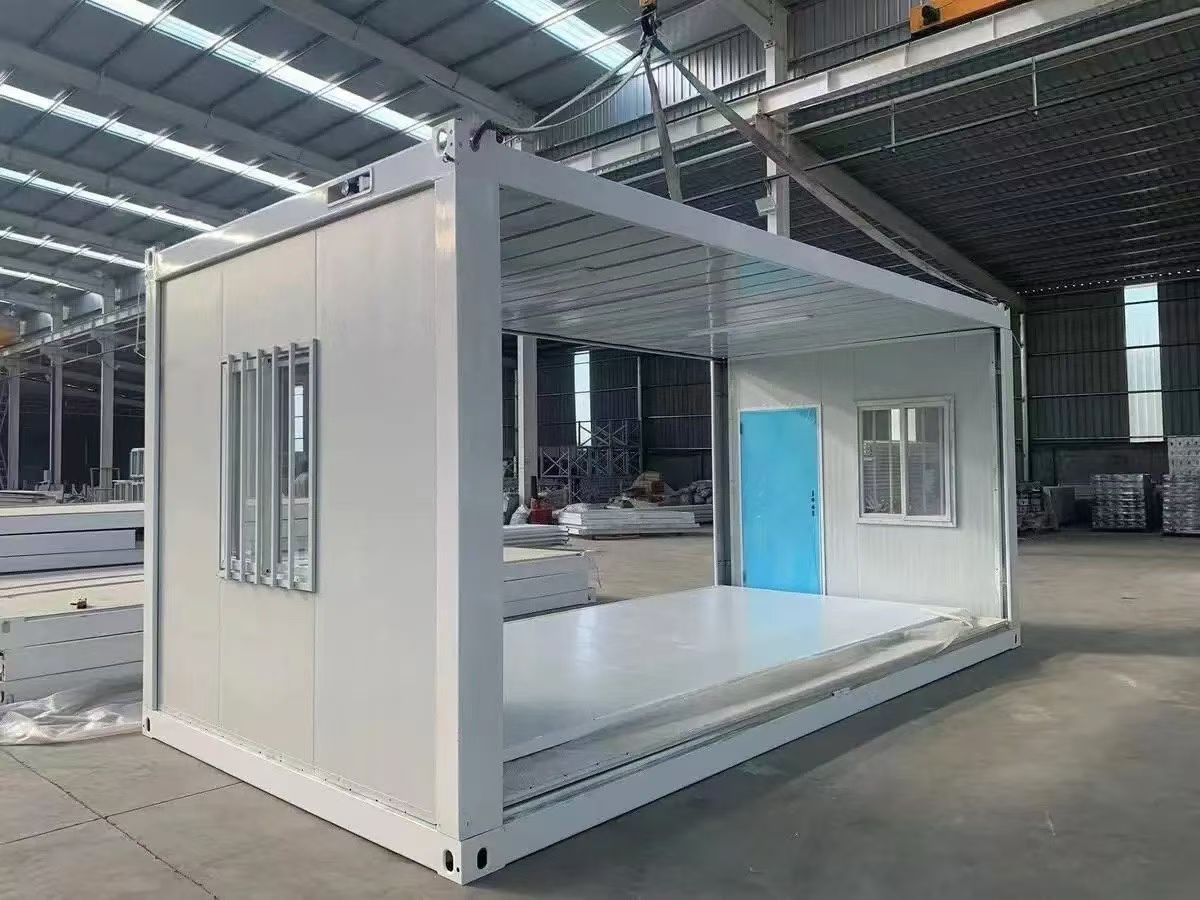

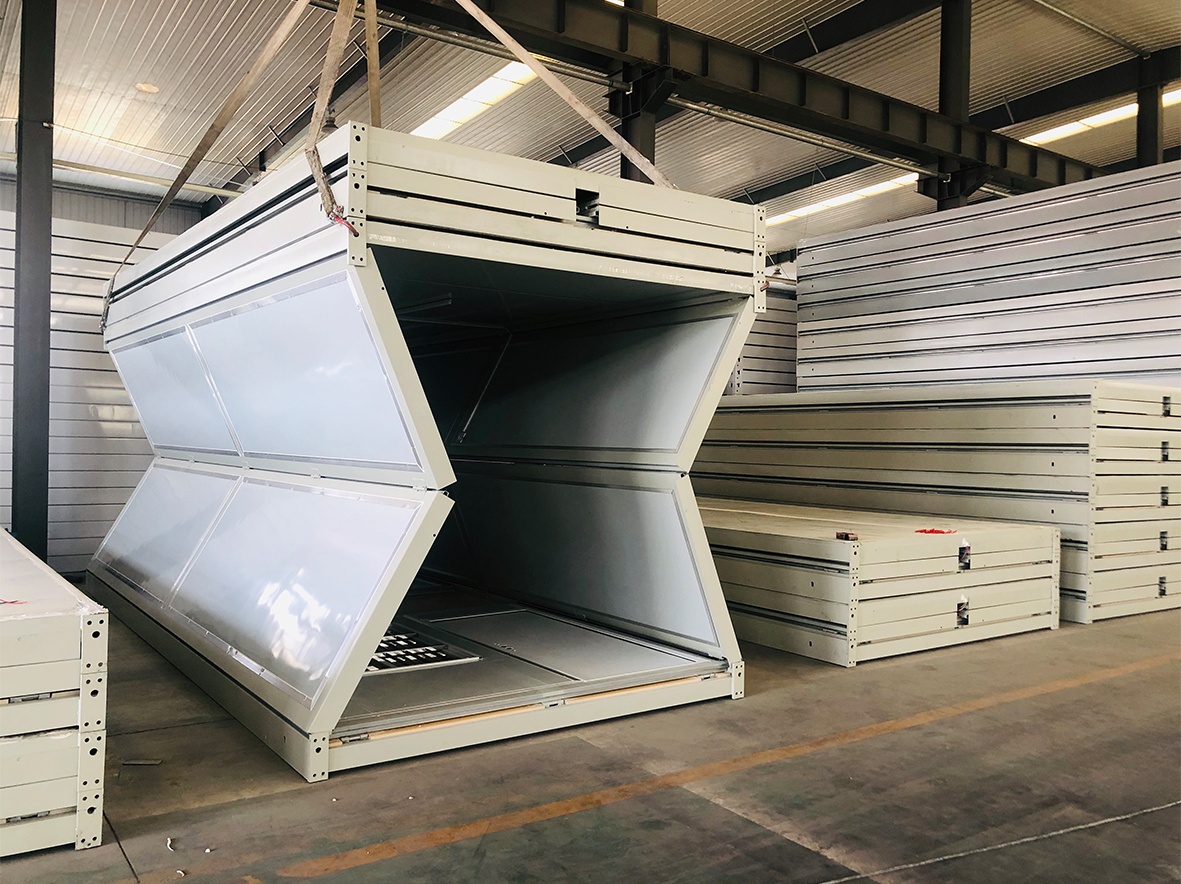

About Folding container house ASSEMBLY
-
Z folding container house works wayinstant inquiry
-
X Folding container house works wayinstant inquiry
Why choose the folding container house from Pantrick
patrick has Rich production experience in the folding container house domain, one of the leading figures in the industry. The house we built is high quality, beautiful, affordable, durable, safe for living, and well-suited for long-term re-use again, can be fast-delivered worldwide, no matter where our customer location, and in our factory inventory with bulk stock quantity for urgent necessary, our products are selling to all over the wolrd such as country Africa, Europe, and North/south America, etc, trusted by 500 more customers with high comments after they buy. Welcome to contact us with your inquiry for more detailed information today.
Pantrick folding container house Testimonials From customer
I would highly recommend your services to anyone who wants to purchase a folding container house. I visited several other companies, and all of them were overly aggressive and never took into account my wants and needs, but you did. Thank you for going that extra mile
Our experience with purchasing a foldable container house was great with Mr.patrick! SO easy. As a first-time container home buyer, our sales rep made everything smooth, and he communicated so well. I would highly recommend Pantrick Modular Home to anyone.
We are extremely happy with our experience shopping collapsible container house from Pantrick! We had been looking around for a container home Manufacturer since April and going to different places. But once we met with Pantrick, we knew."
FAQ
How much a folding container house cost
Regular folding container house wholesale exw price sale will be charged from 1100USD per unit.
What is the service life of a folding container house?
It can typically last for 15 to 20 years when used in non-severe climatic conditions.
Can folding container houses withstand extreme weather (e.g., typhoons, heavy snow, earthquakes, or high/low temperatures)?
Yes. Folding container house is great for withstanding used at extreme weather. It has its own performance, Heat insulation and thermal protection, durable and sturdy
Can FCHs be modified for specific uses (e.g., adding solar panels, roll-up doors, or glass walls)?
Yes, a folding container house is supported for modified specific uses, is fine for adding solar panels or roll-up doors, and front and back side walls are all great for installing about the glass walls.
